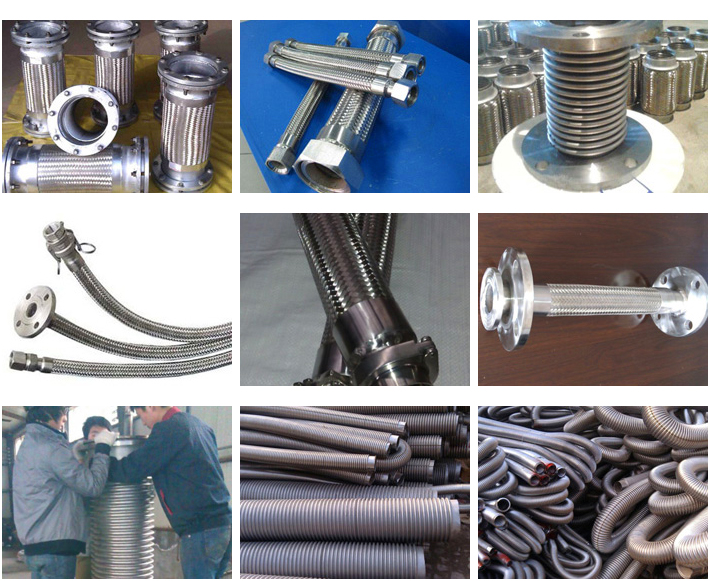

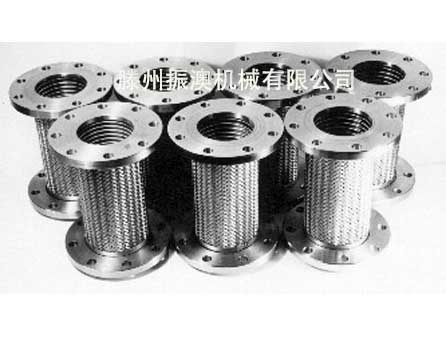

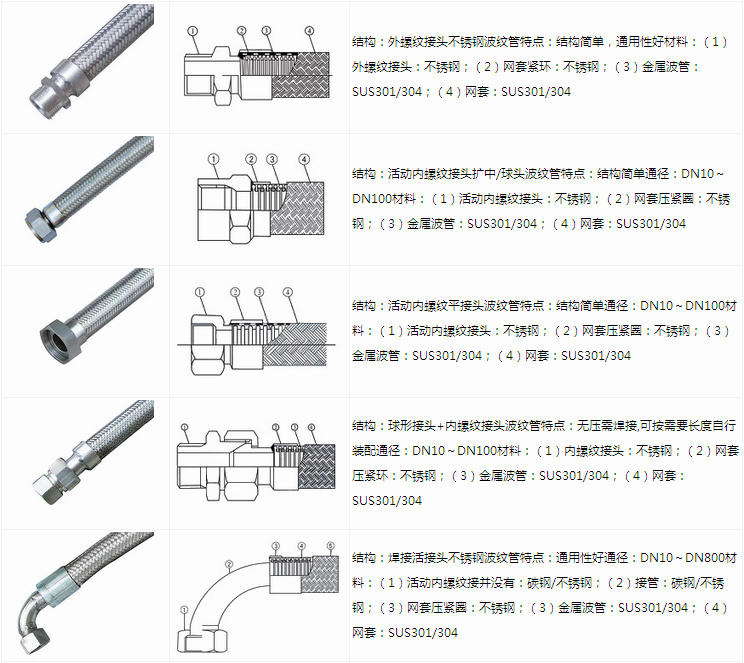

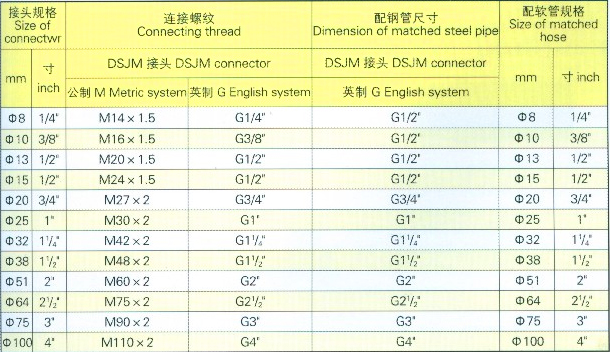

| 形式記號 | 通徑(A) | 尺寸 | 彎曲半徑 | 軟管使用壓力 | |||
| 內徑 | 外徑 | 小 | 反復 | (kgf/cm2) | (Mpa) | ||
| S | 10 | 10.5 | 15.2 | 20 | 140 | 50 | 4.9 |
| 15 | 13.4 | 18.5 | 30 | 160 | 40 | 3.9 | |
| 20 | 19.1 | 25.6 | 30 | 200 | 30 | 2.9 | |
| 25 | 25.4 | 32.8 | 40 | 220 | 25 | 2.5 | |
| 32 | 32.9 | 40.6 | 40 | 290 | 25 | 2.5 | |
| 40 | 39.3 | 47.6 | 50 | 360 | 25 | 2.5 | |
| 50 | 51.8 | 61.5 | 60 | 470 | 25 | 1.2 | |
| 形式記號 | 公稱通徑 | 內徑 | 外徑 | 小曲半徑 | 高使用壓力(Mpa) | ||
| 本體 | 一層網 | 靜態 | 動態 | 2層套網 | |||
| A | 14 1/2″ | 14 | 20 | 22 | 62 | 120 | 12.5 |
| 16 5/8″ | 16 | 23 | 25 | 80 | 150 | 10.0 | |
| 20 3/4″ | 20 | 28 | 30 | 100 | 180 | 8.0 | |
| 25 1″ | 25 | 35 | 37 | 120 | 280 | 7.5 | |
| 32 1 1/4″ | 32 | 43 | 45 | 140 | 340 | 6.4 | |
| 40 1 1/2″ | 40 | 51 | 53 | 180 | 450 | 5.6 | |
| 50 2″ | 50 | 62 | 64 | 220 | 550 | 4.0 | |
| 65 2 1/2″ | 65 | 79 | 82 | 280 | 650 | 4.0 | |
| 80 3″ | 80 | 97 | 100 | 350 | 800 | 4.0 | |
| 100 4″ | 100 | 122 | 125 | 400 | 1000 | 4.0 | |
| 125 5″ | 125 | 151 | 155 | 500 | 1200 | 4.0 | |
| 150 6″ | 150 | 180 | 184 | 600 | 1500 | 4.0 | |
| 175 7″ | 175 | 210 | 215 | 700 | 1750 | 4.0 | |
| 200 8″ | 200 | 240 | 245 | 800 | 2000 | 4.0 | |
| 250 10″ | 250 | 298 | 303 | 1000 | 2200 | 4.0 | |
| 300 12″ | 300 | 360 | 365 | 1200 | 2500 | 2.5 | |
| 350 14″ | 350 | 410 | 415 | 1400 | 3000 | 2.5 | |
| 400 16″ | 400 | 460 | 465 | 1600 | 3500 | 2.5 | |
